High Precision Electric Feeding Copper Belt Pressing Machine YH-DT4.0T 500*380*580mm

Place of Origin : Guangdong, China

Brand Name : Yihan

Model Number : YH-DT4.0T

Usage : Crimping

Product name : copper tape splicing pressing machine

Power Supply : AC220V 50/60HZ

Pressing capicity : 4.0T

Feeding method : Stepper motor automatic feeding

Power : 1500W

Stroke Length : 30mm

Pressing capacity : 4000KG

Height adjustment : 8mm

Weight : 105kg

Dimension : 500*380*580mm

Packaging Details : wooden package

Port : shenzhen/guangzhou/zhejiang/shanghai/jiangsu/beijing

Supply Ability : 1000 Set/Sets per Month

Price : $1,750.00 - $2,500.00/sets

MOQ : 1 set

Contact Now

High Precision Electric Feeding Copper Belt Pressing Machine YH-DT4.0T 500*380*580mmHigh Precision Electric Feeding Copper Belt Pressing Machine YH-DT4.0T 500*380*580mm

High Precision Electric Feeding Copper Belt Pressing Machine YH-DT4.0T 500*380*580mm

YH-3.0T Copper belt wire connector crimping machine

Features:
1: This machine is designed for the wire that needs riveting, pressing the riveting and connecting the wire to replace the traditional welding method.
2: Using special continuous copper strip terminal, the material is cut, formed, pressed once, quickly and without waste, saving cost.
3: The copper belt is treated by special grain, and the endurance is very strong after riveting.
4: Scope of application: the connection between the xenon lamp and the resistor, the connection between the slide switch and the wire, the connection between the high temperature heating elements, and the connection between the thermosensitive elements.

High Precision Electric Feeding Copper Belt Pressing Machine YH-DT4.0T 500*380*580mm

Product Description
High Precision Electric Feeding Copper Belt Pressing Machine YH-DT4.0T 500*380*580mm

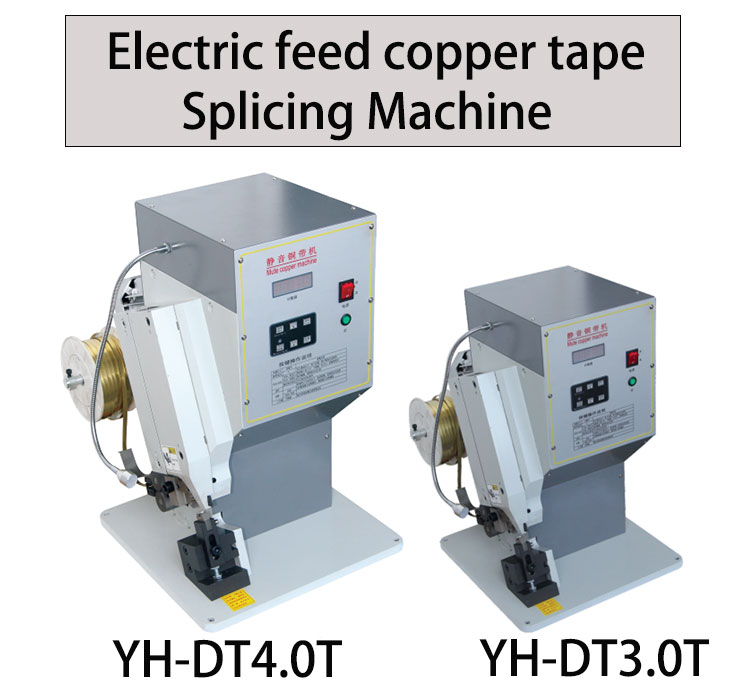

Product Name Electric feed copper tape splicing Machine
Model  YH-DT4.0T YH-DT3.0T
Feeding method Stepper motor automatic feeding
Power Supply AC220V  50/60HZ
Pressing capicity  4000KG 3000KG
Stroke Length  30mm 23mm
Work efficiency  2000 times/hour
Motor Power 1500W 1100W
Height adjustment 8MM 8MM
Dimension  500*380*580mm 400*290*450mm
Weight  105KG 45KG

High Precision Electric Feeding Copper Belt Pressing Machine YH-DT4.0T 500*380*580mmHigh Precision Electric Feeding Copper Belt Pressing Machine YH-DT4.0T 500*380*580mm

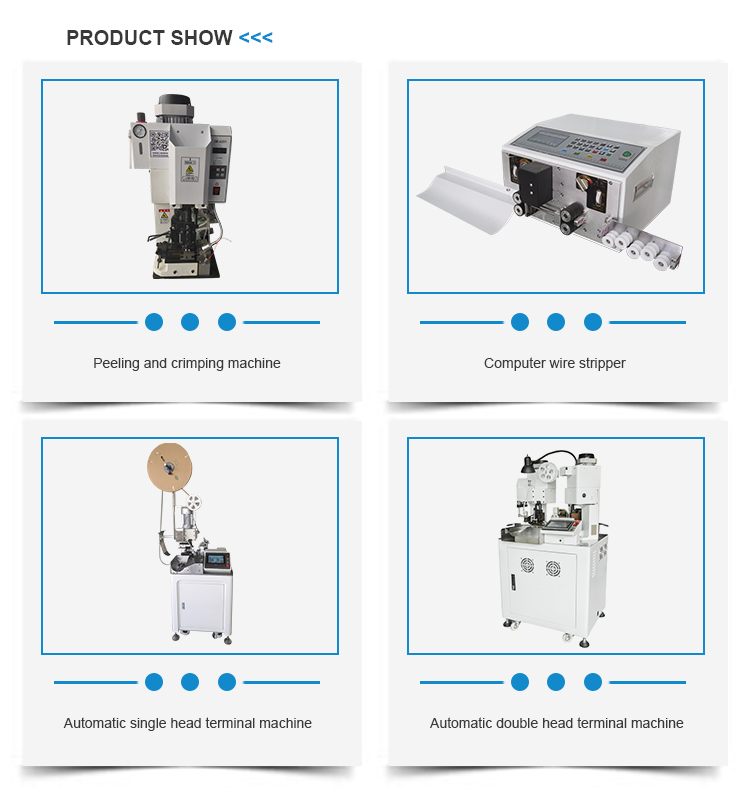

Product show
