Touch Screen Drive Mode Multi-function 2-23 Mm Electrical Coaxial Cable Stripping Machine

Name: Touch Screen Drive Mode Multifunction 223 Mm Electrical Coaxial Cable Stripping Machine
Brand: Yihan
Price: 14 USD

Buy cheap Touch Screen Drive Mode Multi-function 2-23 Mm Electrical Coaxial Cable Stripping Machine product

Place of Origin : Guangdong, China

Brand Name : Yihan

Model Number : YH-8023C, YH-8023C

Usage : Stripping, Stripping

Line diameter range : 2.0-23mm

Stripping length : 0.1-150mm

Unit of cutting depth : 0.01mm

Max.layers of wire stripping : 9 layers

Drive mode : Touch screen

Display mode : ball screw drive

Blade : 4pcs

Centering slice : 4pcs

Packaging Details : wooden package

Port : Shenzhen

Supply Ability : 50 Set/Sets per Month

Price : $14,000.00/sets 1-3 sets

MOQ : 1 set

Contact Now

Touch Screen Drive Mode Multi-function 2-23 Mm Electrical Coaxial Cable Stripping Machine

YH-8023C Coaxial wire stripping machine

FEATURE:

1. Mainly used for the processing of coaxial cables and special single wires, using the most advanced rotary tool holder to improve accuracy and speed.

2. LCD display.

3. With a specific axis positioning device and a rotary tool method, up to 9 layers can be stripped.

4. Corresponding to various sizes and sheath wires without changing the blade.

Touch Screen Drive Mode Multi-function 2-23 Mm Electrical Coaxial Cable Stripping Machine

Product Description

Model	YH-8023C
Max cable diameter	1.5-up to 23mm
Cutting Unit Depth	0.01mm
Max Stripping Length	150mm
Max Stripping layers	9 layers
Drive mode	ball screw drive
Display method	Touch screen
Blade/Material	4pcs/Tungsten steel
Centering piece/Material	4pcs/Tungsten steel
Clamp devices	Self-aligning, force controlled by program
Productivity	250-500pcs/h(Depending on the length and types of cable )
Boot mode	Manual / padaling(optional)
Supply power	220V/50HZ/60HZ
Rated power	900W
Weight	40KG
Dimensions	850X230X360 mm
Working environment	0-50 degrees, moderate drying, vibration-free work surface, moderate dryness workshop

Touch Screen Drive Mode Multi-function 2-23 Mm Electrical Coaxial Cable Stripping Machine

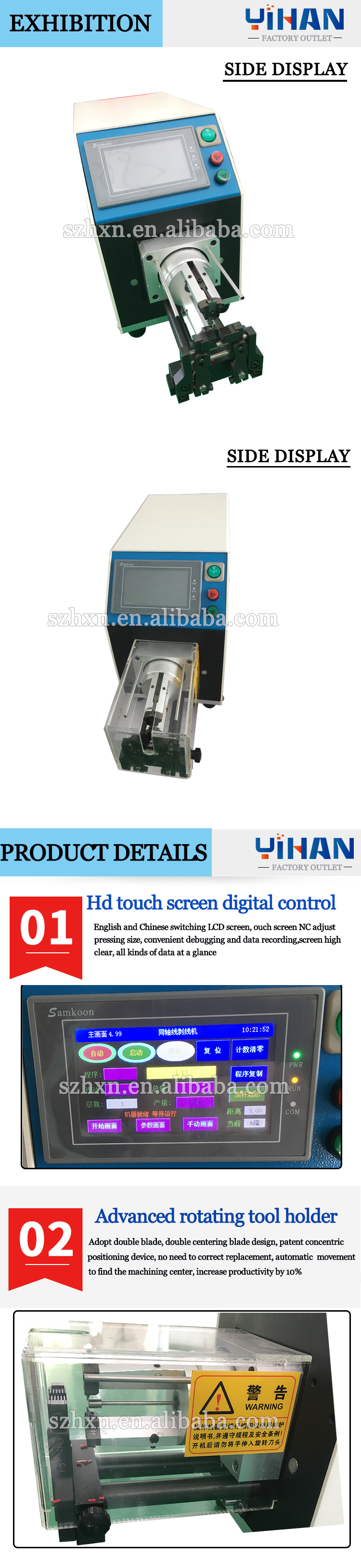

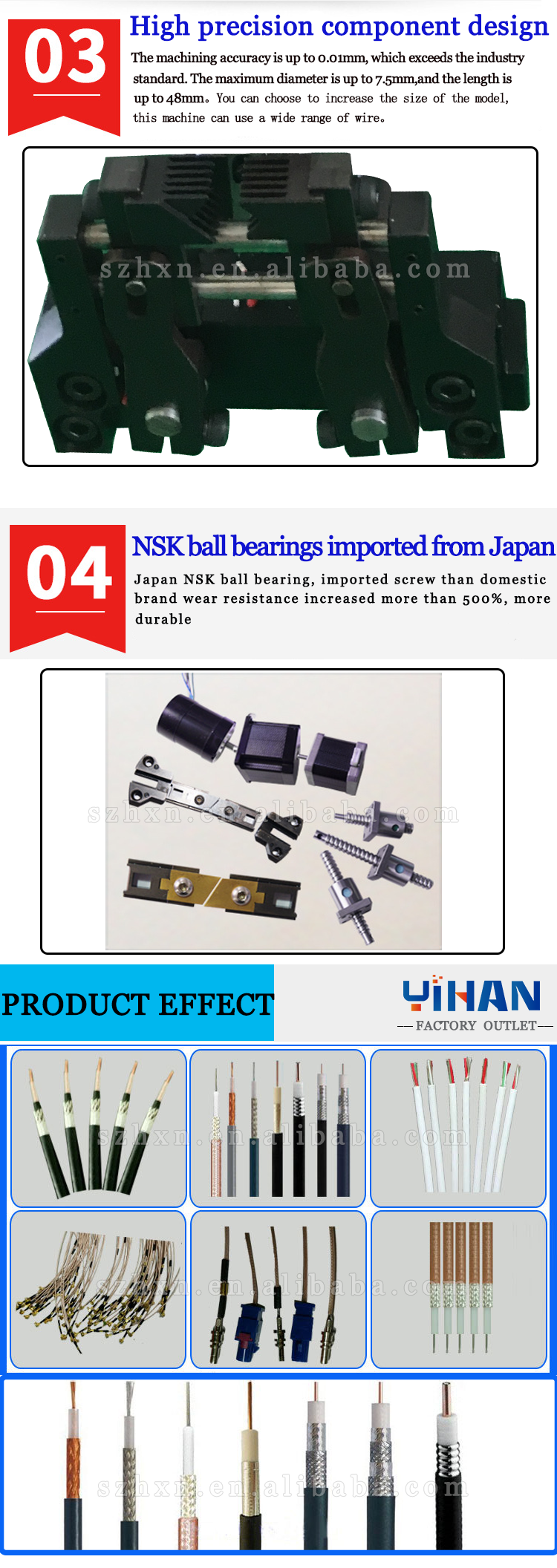

Product show

Touch Screen Drive Mode Multi-function 2-23 Mm Electrical Coaxial Cable Stripping Machine

Company profile

Touch Screen Drive Mode Multi-function 2-23 Mm Electrical Coaxial Cable Stripping Machine

Touch Screen Drive Mode Multi-function 2-23 Mm Electrical Coaxial Cable Stripping Machine Images
