Max 5MM Catheter Diameter Wire Cutting and Stripping Machine with 4000pcs/H Output

Name: Max 5MM Catheter Diameter Wire Cutting and Stripping Machine with 4000pcsH Output
Brand: Yihan
Price: 500.00 USD

Buy cheap Max 5MM Catheter Diameter Wire Cutting and Stripping Machine with 4000pcs/H Output product

Place of Origin : Guangdong, China

Brand Name : Yihan

Model Number : YH-800-03

Usage : Multifunctional, Stripping and cutting

Product name : cable cutting stripping machine

Stripping length : Head 0 - 25mm Tail 0-25mm

Cutting Length : 1mm-99999.99mm

Wire available : AWG#14-AWG32#

Max Catheter diameter : 5MM

Size : 490*450*340mm

Weight : 29KG

Productivity : 4000pcs/H(L=100MM)

Warranty : 3 years

Packaging Details : Wooden package

Price : $500.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Max 5MM Catheter Diameter Wire Cutting and Stripping Machine with 4000pcs/H Output

Automatic wire cutting and stripping machine thick wires wire cutting and stripping machine

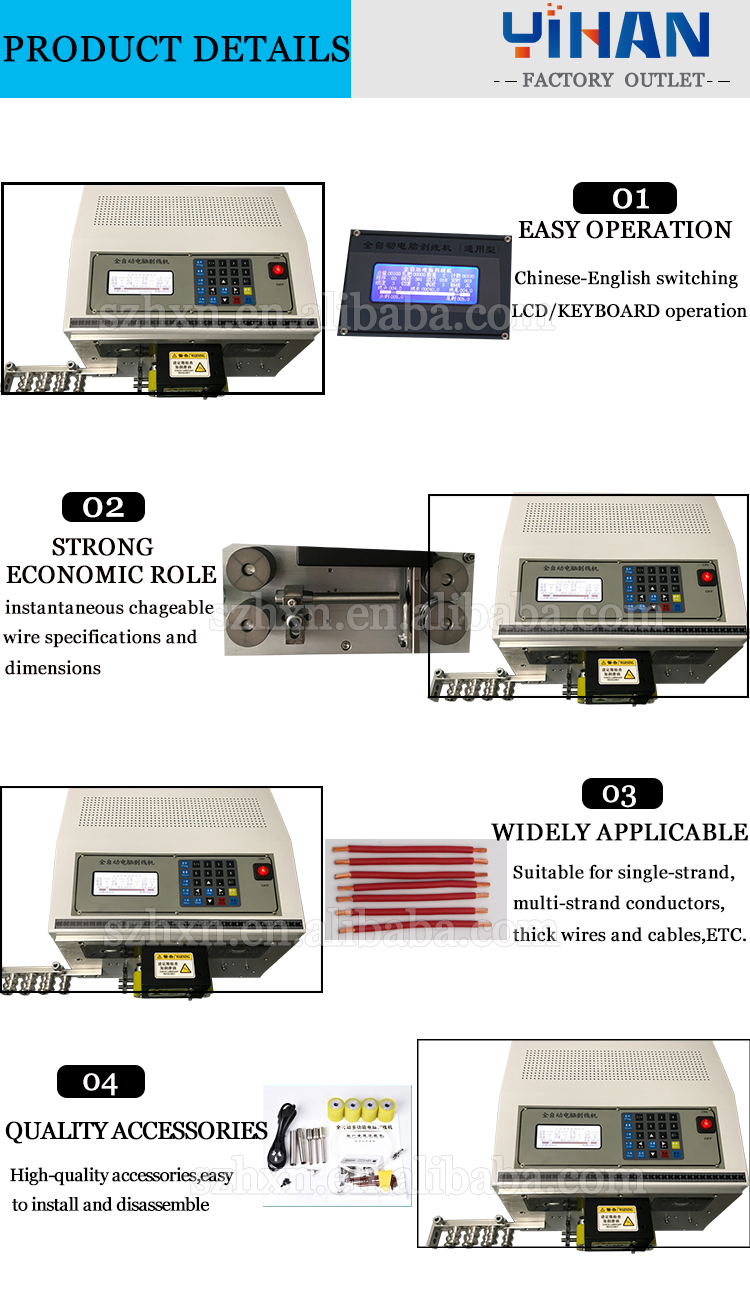

Features:

1.The machine uses the latest 32 intelligent control system, Chinese and English switching liquid crystal display,can store hundreds of pieces of information, called at any time, fast efficiency.
2.Compatible with the general features of 330# wire cutting machine.Double linear,two wires can be processed simultaneously,not only saves labor and time,but also improve productivity.
3.Mainly used for electronic wire, silicone wire,Teflon wire, glass fiber of cotton,isolated lines,coaxial,trunking.Automatic cutting, stripping, semi-stripping,multi-segment stripping, twisting function once completed,can instantly transform wire specifications and dimensions,it’s very economic.
4.The machine is mainly used in electronics, electrical appliances, toys, auto parts and other industries.

Product Description

Product Name	Automatic wires cutting stripping machine
Model	YH-800-03
Dimension	490450340mm
Weight	29KG
Display method	Chinese or English interface display
Power supply	AC220/250V/50/60HZ
Capacity	120-220W
Cutting length	1mm-99999mm
Outer diameter	0-6mm
Peeling length	Head0-100mm Tail0-80mm(According to the wire)
Applicable wire core area	Max outer diameter 6mm
Productivity	2000-4000pcs/h(according to the cutting length)
Tool Material	Tungsten steel / white steel
Drive mode	Four simultaneously drive
Stripping Mode	Long wire/ short wire /Multi-stripping / multi stripping

Max 5MM Catheter Diameter Wire Cutting and Stripping Machine with 4000pcs/H Output

Product show 3

Company profile

Max 5MM Catheter Diameter Wire Cutting and Stripping Machine with 4000pcs/H Output

Advantages

Max 5MM Catheter Diameter Wire Cutting and Stripping Machine with 4000pcs/H Output

Certification

Max 5MM Catheter Diameter Wire Cutting and Stripping Machine with 4000pcs/H Output

Packaging delivery

Max 5MM Catheter Diameter Wire Cutting and Stripping Machine with 4000pcs/H Output

Problem solving

Max 5MM Catheter Diameter Wire Cutting and Stripping Machine with 4000pcs/H Output
